Coating Production Line – High-Efficiency, Energy-Saving Electrophoresis Oven

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                high-efficiency electrophoresis oven, energy-saving coating production line, electrophoretic coating equipment with warranty

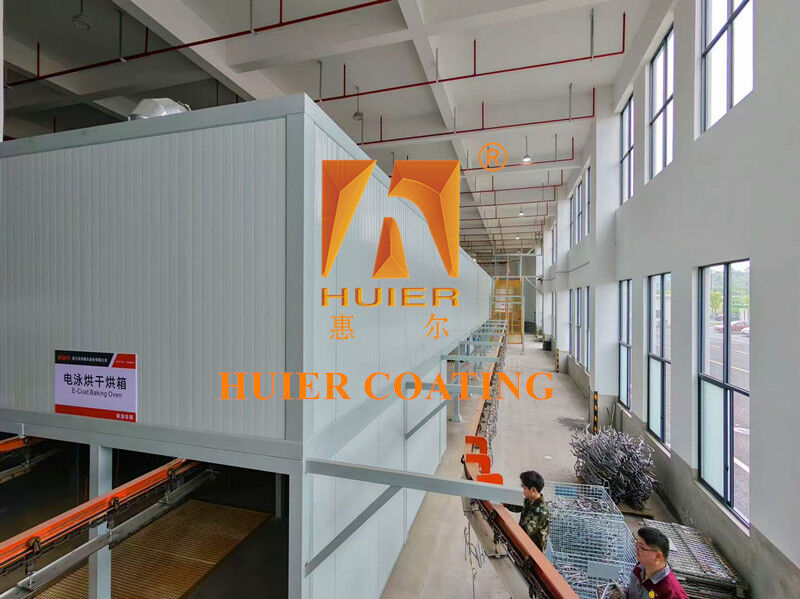

Coating Production Line – High-Efficiency, Energy-Saving Electrophoresis Oven

Advanced industrial oven system designed for high-temperature drying and curing of electrophoretic paint films on metal workpieces, delivering exceptional surface protection with precision temperature control and energy-efficient operation.

Equipment Purpose & Operation

This specialized oven performs high-temperature drying and curing of coating films on metal workpieces following electrophoresis. Utilizing hot-air circulation and precise temperature control, it ensures complete cross-linking and curing of electrophoretic paint films for superior surface protection quality.

Working Principle

Parameters including drying temperature, hot-air circulation speed, curing duration, and exhaust heat recovery are controlled via PLC or industrial computer. Workpieces undergo multi-stage processing according to preset programs including preheating/ramp-up, isothermal curing, cooling, and exhaust gas purification.

Process Flow

Workpiece enters oven after electrophoresis
Preheating/Ramp-up Zone
High-Temperature Isothermal Curing Zone
Hot-Air Circulation/Exhaust Heat Recovery
Forced-Air Cooling Zone
Unloading

Core Components & Systems

System	Components & Features
Heating & Temperature Control	Natural gas burner heat exchanger / Far-infrared electric heating tubes / Hot-air circulation heat exchange system; PID temperature control precision of ±2°C; High-temperature resistant PT100/K-type thermocouple sensors + intelligent multi-channel temperature controller
Intelligent Control System	PLC (S7-1200) + Touchscreen HMI for precise heating curve control; Oven temperature sensors, air pressure transmitters, over-temperature alarms, and gas leak sensors; Supports recipe storage, fault alarms, and energy consumption reporting
Auxiliary Systems	High-temperature exhaust fan + RTO/TNO waste gas incineration and heat recovery (activated carbon or catalytic combustion options); Explosion-proof doors, emergency stop buttons, thermal insulation platforms, waterproof/dustproof electrical cabinets

Key Advantages

Automation: Fully integrated with conveyor lines; no manual intervention required; supports continuous high-temperature drying production
High Precision: Temperature uniformity within ±2.5°C ensures consistent curing of electrophoretic paint films
Energy Efficiency & Environmental Protection: Waste heat recovery systems and exhaust incineration (TNO/RTO) technology significantly reduce natural gas/electricity consumption and minimize emissions

Application Fields

Automotive manufacturing, home appliance hardware, construction machinery, electronic components, and other industries requiring high-corrosion-resistance electrophoretic coating curing.

Additional Value Features

High Cost-Performance Ratio: Tailored designs prioritize cost-effectiveness with high-efficiency waste heat recovery to significantly reduce operating costs
Advanced Equipment Design: Precision air-curtain heat containment technology and highly automated industrial heating systems reflect modern enterprise standards
High Adaptability: Meets current production capacity while accommodating future growth in output and quality standards
Quality Compliance: Strict adherence to ISO9001 quality management system with rigorous control over installation details including furnace insulation, thermal bridge prevention, airflow balancing, and sealing integrity
