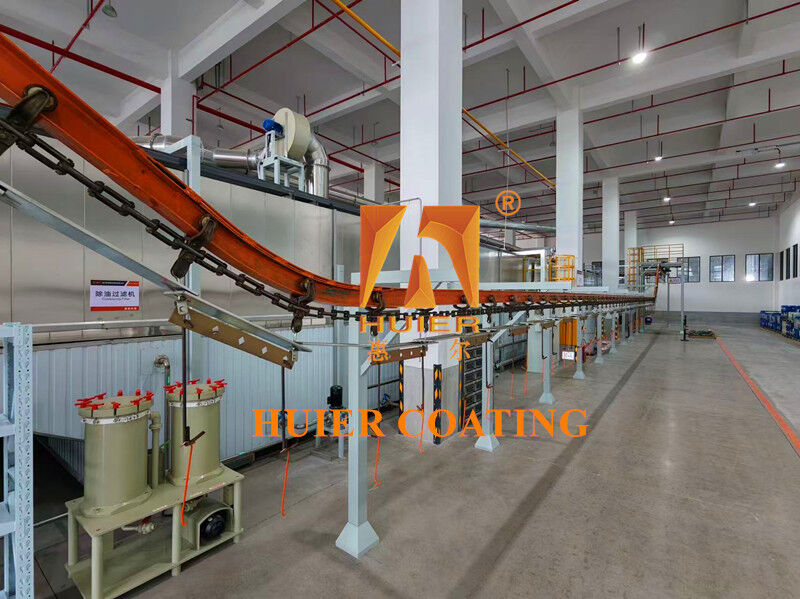

Painting line pre-treatment automatic oil removal and filtration system

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                Painting line oil removal system, Automatic filtration system for painting, Chemical cleaning line pre-treatment


Painting line pre-treatment automatic oil removal and filtration system

Painting Line Pre-treatment Automatic Oil Removal and Filtration System

Equipment Overview

This automated system is designed for continuous removal of floating oil and suspended impurities from bath solutions during the degreasing stage of metal workpiece pre-treatment. It ensures optimal coating pre-treatment through high-efficiency oil-water separation and multi-stage filtration technology.

Working Principle

The system operates under PLC or industrial computer control, managing parameters including floating oil suction (based on liquid level), oil-water separation flow rate, and oil discharge timing. It executes a comprehensive multi-stage treatment process according to preset programs.

Key Advantages

Full Automation: Eliminates manual oil skimming and supports 24-hour continuous automatic operation
High Precision: Advanced oil-water separation and filtration extends degreasing bath solution lifespan and ensures consistent quality
Energy Efficient: Circulating filtration system significantly reduces degreaser consumption and wastewater discharge
Environmental Compliance: Lowers environmental treatment costs through reduced waste output

Process Flow

Suction of floating oil/bath solution → Floating oil suction device → Oil-water separator → Multi-stage bag filter / Magnetic bag filter → Return of purified liquid to degreasing tank → Recycling

Core Components

Complete system includes: Floating oil suction/skimming mechanism, oil-water separation tank, multi-stage filter bags, magnetic filter element, circulation pump, piping and valves, and oil/sludge collection chamber. These components work in coordination to extract floating oil, separate oil and water, filter impurities, and return purified bath solution for reuse.

Application Areas

Ideal for coating production lines requiring high-cleanliness pre-treatment, including automotive manufacturing, home appliance hardware, construction machinery, and electronic components.

System Features

High Cost-Performance Ratio

Customized solutions tailored to customer product positioning and development strategy, prioritizing affordability for optimal value.

Advanced Equipment Design

Engineered with commitment to excellence, reflecting modern enterprise standards and advanced manufacturing principles.

High Adaptability

Meets current production requirements while enabling bath solution recycling and extending replacement cycles.

Quality Compliance

Strict adherence to ISO9001 quality management system with rigorous quality control throughout equipment installation.
