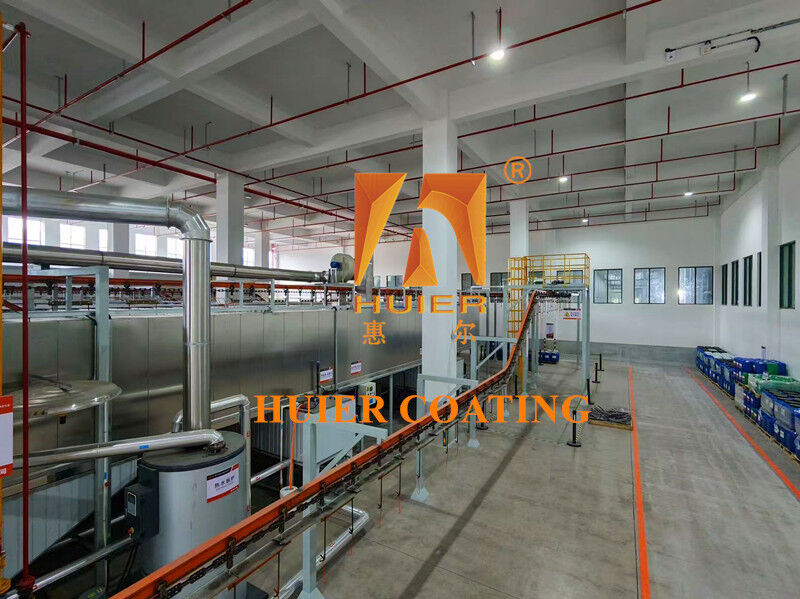

Pre-treatment Heating System for Painting Production Lines

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                pre-treatment heating system for painting, painting production line heating system, chemical cleaning line heating equipment


Pre-treatment Heating System for Painting Production Lines

Equipment Overview

This system provides precise heating and temperature maintenance for bath solutions during metal workpiece pre-treatment processes including degreasing, phosphating, silanization/zirconium coating, and hot deionized water rinsing. It facilitates efficient degreasing, chemical conversion coating formation, and surface preparation through optimized heat transfer.

Working Principle

A PLC or industrial computer controls heating parameters including valve opening, circulation pressure, and bath temperature. The system regulates multi-stage pre-treatment baths according to preset programs for heating, constant temperature maintenance, and heat preservation across various process stages.

Key Advantages

Automation: Fully automated closed-loop temperature control with continuous heating and low-power heat preservation during off-hours
High Precision: Intelligent PID temperature control ensures uniform and stable bath temperatures for consistent pre-treatment reactions
Energy Efficiency: Utilizes high-efficiency plate heat exchangers and waste heat recovery systems to reduce natural gas/steam consumption and carbon emissions
Application Areas: Automated coating production lines for automotive manufacturing, home appliance hardware, construction machinery, and electronic components

Process Flow

Heat Source Supply → Heating Medium Circulation Network → Heat Exchange → Pre-treatment Heating Baths → Condensate/Waste Heat Recovery → Recycling

Main Structure and Core Components

Spraying and Heating Medium Circulation System:

Nozzles: Steam injection mixers and high-temperature fluid circulation nozzles for rapid temperature rise and uniform heat distribution
Spraying Piping: Insulated seamless steel or corrosion-resistant stainless steel piping with electric control valves, pneumatic shut-off valves, and pressure sensors
High-Pressure Pump: High-temperature heat medium circulation pump providing stable heating circulation pressure (0.2-0.6 MPa)

Conveying System:

Conveyor Chain: High-temperature, corrosion-resistant overhead conveyor with adjustable speed (0.5-5 m/min)
Rotation Mechanism: Optional workpiece rotation device for uniform heating and cleaning without blind spots

Tank Structure:

Main Processing Tank: Thickened stainless steel or carbon steel with anti-corrosion lining and double-layer insulation
Liquid Storage Tank: Heat storage tank with level sensors, dry-run protection, and automatic replenishment functions

Filtration and Circulation System:

Multistage Filter: Magnetic scale filter + high-temperature fine filter (precision ≤25 μm) to prevent scaling and clogging
Circulation Pump: High-temperature, corrosion-resistant vertical circulation pump for continuous thermal circulation

Heating and Temperature Control:

Heating Method: Plate heat exchanger, gas-fired thermal oil heater, or electric heating elements with PID temperature control accuracy of ±2°C
Temperature Control Module: Dual anti-corrosion PT100 temperature sensors with intelligent multi-channel controller and over-temperature alarm

Intelligent Control System:

Main Control Unit: PLC + touchscreen HMI with one-touch setting for target temperatures and preheating curves
Sensors: Temperature sensors, flow meters, pressure transmitters, and level gauges for real-time monitoring
Data Management: Supports storage of heating curves, energy consumption reports, and fault alarms

Auxiliary Systems:

Exhaust System: Steam exhaust hood with centrifugal fan and waste heat recovery unit
Safety Features: Dry-run protection, high-temperature insulation, emergency stop, and waterproof/explosion-proof electrical cabinet

Key Features

High Cost-Performance Ratio

Optimal value through balanced cost-effectiveness and performance with optimized heat balance calculations and efficient heat exchange configurations

Advanced Equipment

Modern design with PID precision temperature control and highly automated industrial heating systems reflecting cutting-edge enterprise standards

High Adaptability

Variable-frequency or proportional heating power regulation with scalability for future production capacity and temperature requirements

Quality Compliance

ISO9001 quality management system compliance with rigorous quality control for installation details including pipeline insulation, weld inspection, and safety interlocks
