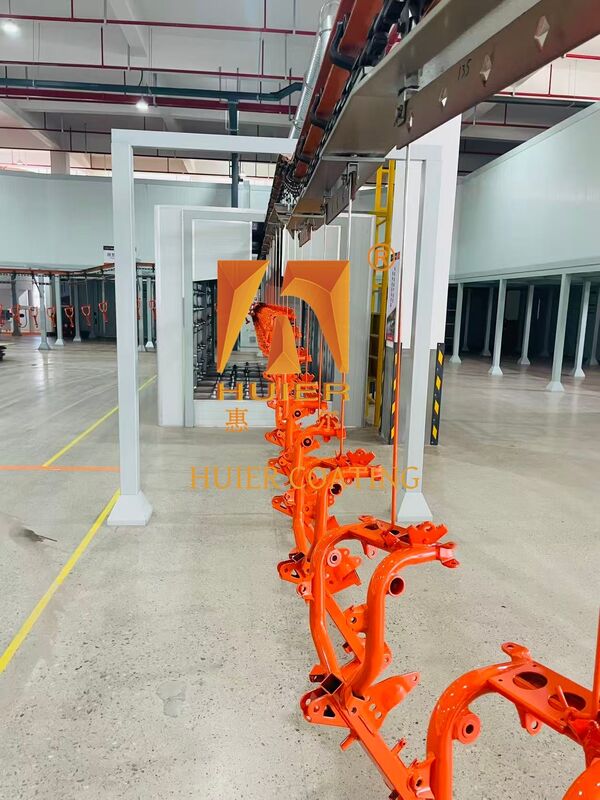

High-Efficiency Forced Air Cooling System for Powder Coating Line

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                forced air cooling system for powder coating, automatic powder coating line cooling, high-efficiency powder coating cooling system


High-Efficiency Forced Air Cooling System for Powder Coating Line

This high-efficiency forced cooling system is designed for automated rapid cooling of metal workpieces after high-temperature powder curing. Through forced convection air cooling, workpieces are rapidly cooled from temperatures approaching 200°C down to 40-50°C (touch-safe unloading temperature) within a short distance, facilitating subsequent online quality inspection, labeling, and packaging/unloading.

Working Principle

High-power explosion-proof centrifugal fans draw in cool fresh air from outside the plant (or conditioned workshop air). After passing through multi-stage filtration and purification, the air is directed through carefully designed air ducts and high-pressure universal nozzles/air knives, creating high-velocity cold airflow that intensely sweeps over the high-temperature workpieces passing through the forced cooling chamber. Heat from the workpiece surface is carried away through vigorous convective heat exchange. The heated air is then rapidly extracted from the top of the chamber by the exhaust system and discharged outside (or directed to a waste heat recovery module).

Core Advantages

Automated Interlocking: The entire process is interlocked with the main conveyor chain and oven outlet frequency drives, requiring no manual intervention and supporting 24/7 continuous high-intensity cooling.
Superior Cleanliness: Cooling air undergoes strict dust-proof filtration, completely preventing workshop dust from adsorbing onto the workpiece coating before it is fully condensed, ensuring high-end appearance quality.
Reduced Line Length: Cooling efficiency is several times higher than traditional natural cooling, greatly shortening the conveyor hang distance between the oven outlet and unloading area, saving valuable plant floor space.
Energy Efficiency & Waste Heat Utilization: Controllable airflow design allows for the addition of waste heat exchange units to redirect heated air back to pre-treatment tank heating or oven inlet air curtains, reducing overall coating line energy consumption.
Application Fields: Automotive manufacturing, home appliance hardware, construction machinery, metal furniture, fitness equipment, and all automated coating production lines requiring rapid cooling after high-temperature curing for timely inspection and unloading.

Process Flow

High-Temperature Curing Oven Outlet → Forced Cooling Chamber Inlet Air Curtain (heat seal) → Counterflow High-Pressure Air Knife Quench Cooling → Uniform-Flow High-Volume Circulation Cooling → Outlet Anti-Spill Air Curtain → Online Quality Inspection → Unloading & Packaging

Main Structure and Components

1. Forced Cooling Chamber Body & Air Curtain Heat-Sealing Structure

Forced Cooling Sealed Chamber Body: Outer walls constructed of double-layer high-temperature-resistant stainless steel or color-coated steel panels, filled with high-density flame-retardant sound-insulating rock wool. This design prevents external dust ingress while effectively containing noise from internal high-pressure fans.
Inlet/Outlet Air Curtain Devices: High-power air curtain machines are installed at both ends of the chamber, creating high-density airflow barriers. The inlet curtain prevents hot air escape from the oven; the outlet curtain prevents cold air from carrying paint dust back into the workshop.

2. Air Purification & Filtration System

Multi-Stage Dust-Free Filters: Combined "primary panel filters + medium-efficiency bag filters" ensure that air impinging on not-yet-fully-cooled furniture/frame coatings is 100% pure and particle-free, preserving surface smoothness and fullness.
Differential Pressure Monitoring Device: Equipped with micro-differential pressure sensors that automatically trigger a filter replacement prompt on the main control screen when dust accumulation resistance exceeds preset limits.

3. Forced Cooling Air Supply & High-Pressure Quench System

High-Volume Air Supply Units: High-efficiency, low-noise heavy-duty centrifugal fans with explosion-proof motors provide ample and stable static pressure and airflow.
Universal Adjustable Nozzles/Special Air Knives: Densely arranged adjustable-angle high-pressure aluminum fan nozzles on both sides and underneath workpieces allow airflow direction adjustment for different sizes and irregular shapes, ensuring no cooling dead zones.

4. Exhaust & Waste Heat Recovery Auxiliary System

High-Temperature Exhaust Fans: Positioned at the top of the forced cooling chamber where hot air accumulates, responsible for forcefully extracting heat-exchanged hot air.
Energy-Saving Heat Exchanger (Optional): Air-to-air heat exchangers extract energy from high-temperature exhaust for pre-heating pre-treatment bath solutions or oven inlet air, achieving secondary energy utilization.

5. Intelligent Electrical Control System

Intelligent Central Control Unit: PLC (e.g., Siemen S7-1200 series) combined with variable frequency drives for intelligent control of all fans across the line.
Non-Contact Temperature Sensors: Infrared online thermometers installed at the forced cooling chamber outlet provide real-time surface temperature monitoring of exiting workpieces.
Adaptive Parameter Management: The main control system automatically adjusts fan frequency based on infrared temperature feedback and conveyor speed (e.g., automatically increasing fan speed if workpiece temperature is too high), ensuring constant unloading temperature and generating temperature trend reports.

Key Features

Cost-Effective: Based on the customer's product positioning and development strategy. By shortening the natural cooling span of the line, plant rental costs are reduced. Combined with economical design principles, optimal cost-performance is achieved.
Advanced Equipment: Embodies a design philosophy of continuous refinement, incorporating highly automated industrial equipment such as dust-free bag-type fine filtration, infrared online temperature measurement, and digital fan frequency control, showcasing the profile of a modern advanced enterprise.
High Adaptability: Cooling airflow volume, air knife nozzle angles, and variable frequency drive logic are flexibly adjustable to meet current production requirements. The design also reserves room for future development to accommodate potential increases in production volume and quality upgrades.
Quality Assurance: Strictly complies with the ISO 9001 quality management system. Every detail of the entire equipment installation (such as air duct airtightness, chamber sound insulation, and filter seal integrity) is rigorously controlled.
