Intelligent Electrophoretic Coating Line for Large Frames

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                Intelligent electrophoretic coating equipment for frames, Large frame electrophoretic coating line, Automated electrophoretic coating system


Intelligent Electrophoretic Coating Line for Large Frames

Automated surface pre-treatment and cathodic electrophoretic primer coating system designed specifically for large metal frames, delivering superior corrosion protection and precision surface treatment.

Equipment Purpose

Designed for automated surface pre-treatment (degreasing, silane/zirconium treatment, or phosphating) and cathodic electrophoretic primer coating on metal workpieces, particularly large frames. Achieves efficient cleaning and dense, high-quality pre-coating film through fully automatic immersion and spray methods.

Working Principle

PLC or industrial computer controls parameters including rectifier voltage, bath temperature, immersion time, ultrafiltration recovery, and conveyor chain speed. Large frames are processed through multiple stages according to preset programs for comprehensive surface treatment.

Core Advantages

Full Automation: Entire process requires no manual intervention, supporting continuous or indexed intelligent production lines for heavy-duty, large-sized frames
High Precision: Programmable process parameters and staged power supply voltages ensure coating corrosion resistance consistency in complex internal cavities and hard-to-reach areas
Energy Efficiency & Environmental Protection: Closed-loop ultrafiltration circulation system minimizes paint waste and wastewater discharge, with heat recovery system reducing energy consumption
Application Fields: Heavy-duty trucks, new energy buses, passenger car subframes, large construction machinery chassis, and industries requiring extreme corrosion protection

Process Flow

Loading → Pre-degreasing Spray → Degreasing Immersion → Water Rinse 1 → Surface Conditioning → Phosphating/Silane/Zirconium Treatment → Water Rinse 2 → Pure Water Rinse → Intelligent Cathodic Electrophoretic Coating → Ultrafiltration Rinses (UF1-UF3) → Pure Water Circulation Rinse → Drying & Curing → Unloading

Main Structure and Components

Component	Specifications

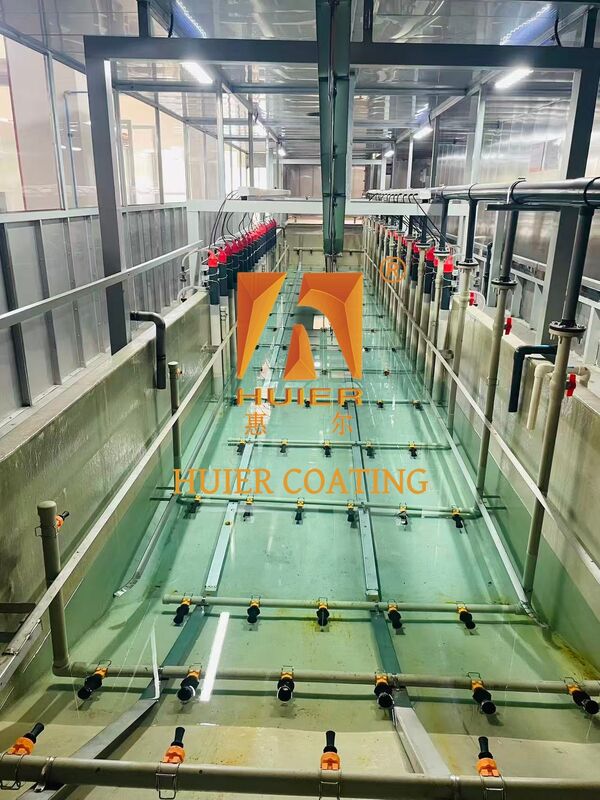

Spray System	Venturi mixing nozzles, high-flow pre-treatment nozzles, corrosion-resistant stainless steel/PVC pipelines, precision pressure sensors, flow meters, pressure regulating valves
Conveying System	Heavy-duty overhead accumulating conveyor chain (0.5-5 m/min), large-tonnage anti-sway mechanisms, self-adaptive grounding brush assemblies
Tank Structure	Heavy-gauge stainless steel/carbon steel with protective lining, high-performance engineering plastics, partitioned processing sections
Filtration System	Multi-stage filters (gravity magnetic separators, bag filters, cartridge fine filters), high-permeability ultrafiltration membrane modules
Temperature Control	Plate heat exchangers/industrial chiller units, PID temperature control (±1°C), PT100 industrial temperature sensors
Control System	PLC (S7-1500) + central touchscreen HMI, bath conductivity meters, online pH meters, solvent content analyzers

Key Features

Cost-Effective Operation: Optimal workstation configuration, closed-loop ultrafiltration circulation system improves paint utilization, low operation and maintenance costs

Advanced Equipment: Industry-leading intelligent segmented rectifier power supplies, multi-dimensional workpiece turnover mechanism, digital monitoring across all process parameters

High Adaptability: Control system supports multiple frame types, adaptive conveyor chain speed and rectifier voltage adjustment for flexible production scheduling

Quality Assurance: Manufactured according to ISO 9001 and IATF 16949 standards, 100% compliant electrophoretic coating film thickness and adhesion, meets heavy-duty anti-corrosion performance requirements

Auxiliary Systems

Exhaust System: Heavy-duty centrifugal fans with acid mist/organic exhaust gas treatment units
Safety Protection: Emergency stop buttons, fully enclosed safety mesh fencing, anti-slip insulated platforms, safety light curtains, waterproof/explosion-proof electrical cabinets
