High Speed Six Axis Manipulator Automatic Powder Coating Line For Precision

Equipment description:

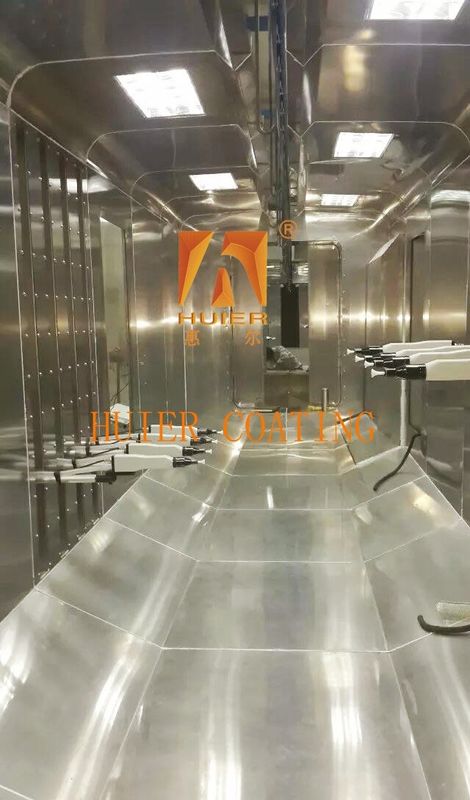

Structure diagram of stainless steel automatic powder spraying system [powder supply unit] → [electrostatic generator] → [automatic spray gun array] → [recovery device] → [PLC control system] Special design highlight pulse blowback recovery system (patent No. ZL2023 2 XXXXX.X) Infrared preheating unit (50-80℃ temperature control) Self-diagnostic alarm system (32 fault code base)

Main structure and components:

The core module is: powder supply system Cyclone powder supply bucket (304 stainless steel inner tank)
Fluidized bed pressure: 0.3-0.5MPa
Powder output accuracy: ±1.5g/min
Electrostatic spraying unit High voltage electrostatic generator: 80-100kV endless regulation ring electrode design (electric field uniformity ≥92%) automatic compensation ionization system
Six-axis manipulator (repeated positioning accuracy ±0.05mm) trajectory planning algorithm: B-spline curve interpolation maximum line speed: 2.5m/s
Technical parameter list

feature:

1.High cost performance Based on the customer's product positioning and development strategy, based on economic benefits, to achieve the best cost performance.

2.Advanced equipment design concept of excellence, high degree of automation of industrial equipment, show modern advanced enterprise style.

3.High adaptability to meet the current production requirements, and reserve space for development, considering the later production increase and quality improvement needs.

4.Quality standards strictly follow the IS0900 quality management system, and every small link of the entire equipment installation is strictly checked.
