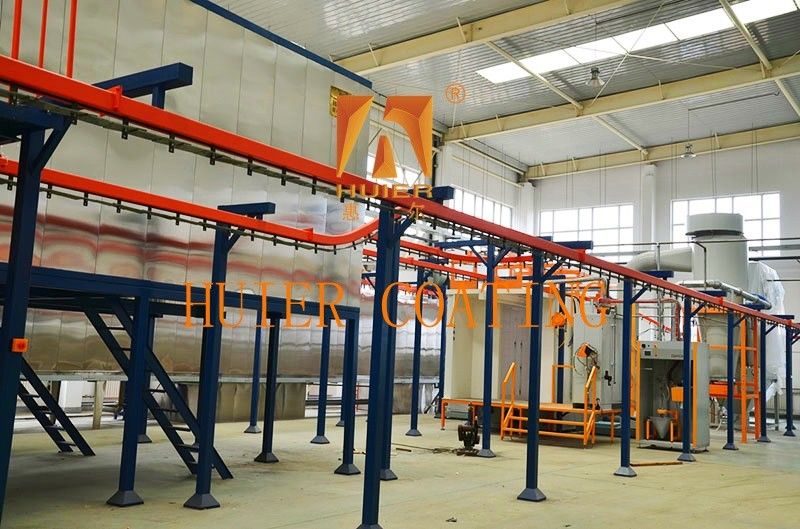

Maximize Productivity Advanced Cabinet Spraying Production Line

Instructions:

Cabinet spraying production line equipment mainly includes pre-treatment equipment, powder spraying (or painting) system, baking box and heat source system and other key components, designed to achieve efficient and uniform spraying work ‌. Cabinet spraying production line includes exhaust gas dust treatment equipment to improve spraying efficiency and environmental performance. The workpiece rotation device can realize the rotation of the cabinet on the production line, and cooperate with uniform spraying to ensure that all parts of the cabinet surface can be fully sprayed. The waste gas dust treatment equipment is responsible for treating the waste gas dust generated in the spray process to ensure the clean and safe production environment ‌

Main structure and components:

The main structure and components of cabinet spraying production line include pre-treatment equipment, powder spraying (or painting) system, baking box, suspension conveying system, electric control system, heat source system and environmental protection system ‌.
1. ‌ pre-treatment equipment ‌ : This is a key step before spraying. It mainly uses the combination of mechanical washing and chemical reaction to complete multi-channel processes such as water washing, oil removal and phosphating to ensure that the cabinet surface is clean and free of impurities, which lays a good foundation for subsequent spraying operations.
2, ‌ powder spraying (or painting) system ‌ : The powder spraying system usually includes electrostatic powder spraying machine (manual spraying machine and automatic spraying machine), powder spraying room and powder recovery equipment. The spray painting system may include a paint spray room and associated equipment. These systems are responsible for evenly spraying powder or paint onto the cabinet surface ‌.
‌ baking box ‌ : baking box plays a vital role in the spraying production line, and the uniformity of its temperature is directly related to the quality of the coating. The oven provides heat by means of radiation, hot air circulation, etc., to ensure that the coating can cure evenly.
3. ‌ suspended conveying system ‌ : The suspended conveying system is responsible for conveying the cabinet on the production line, which is usually composed of a driving device, tensioning device, rotating device, traction chain, etc., to ensure that the cabinet can move smoothly and accurately ‌ in the process of spraying and baking.
4, ‌ electronic control system ‌ : the electronic control system is responsible for controlling the operation of the whole production line, including the automatic control of spraying, baking, conveying and other links, to ensure the efficient and stable operation of the production line ‌.
‌ heat source system ‌ : The heat source system provides stable heat energy for the baking box, and its heating methods may include electric heating, coal heating, diesel heating and other ways, the specific selection should be determined according to the actual needs and conditions of the production line.
5, ‌ environmental protection system ‌ : The environmental protection system is responsible for treating the waste gas, wastewater and other pollutants generated in the spraying process to ensure the cleanliness and safety of the production environment. This may include activated carbon filtration boxes, UV photooxygen, catalytic combustion and other waste gas treatment equipment, as well as wastewater treatment equipment

Features:

1. High cost performance Based on the customer's product positioning and development strategy, based on economic benefits, to achieve the best cost performance.

2. Advanced equipment design concept of excellence, high degree of automation of industrial equipment, show modern advanced enterprise style.

3.High adaptability to meet the current production requirements, and reserve space for development, considering the later production increase and quality improvement needs.

4. Quality standards strictly follow the IS0900 quality management system, and every small link of the entire equipment installation is strictly checked.
